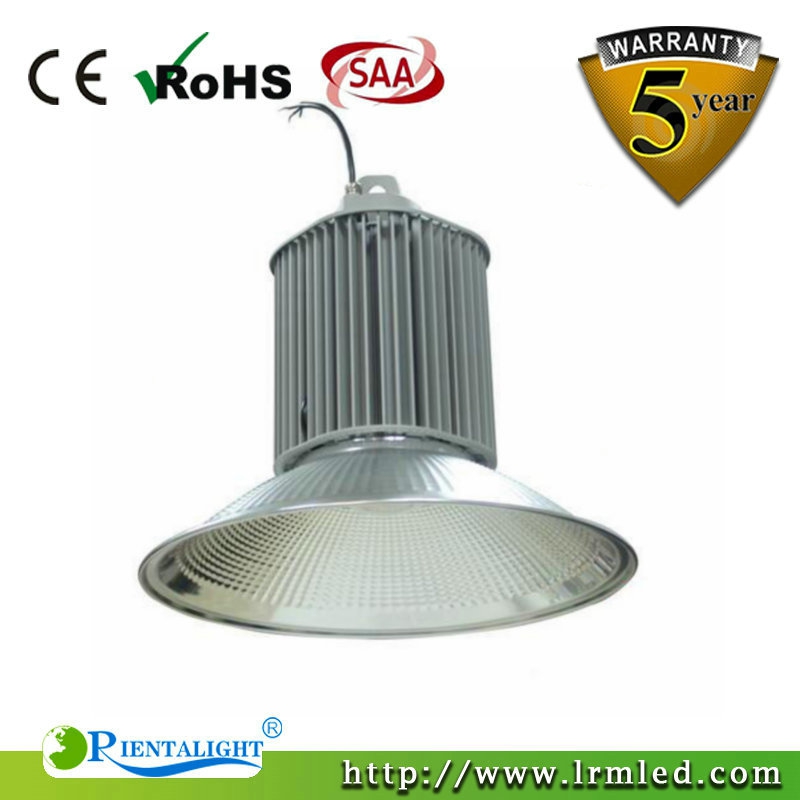

Warehouse Industrial high Bay lighting fixture 300w LED High Bay Light
We are a Professional LED High Bay Light supplier ! We are a Professional LED High Bay Light manufacturer !
What is a LED High Bay Light?
LED high bay light is popular light in the lighting market. Nowdays, smart facility owners are looking for just about any way to reduce energy cost. Electricity cost is a significant expense in most operations and Metal Halide lamp, High Pressure Sodium lamp or Mercury Vapor inefficient high bay lighting systems are the main culprit. Just imaging vary on how much energy is consumed by high bay lighting but range as high as 70% or more in certain applications. It‘s easy to see that conservation here can yield significant results to overall operational costs.
Most of LED high bay lights are used in the places where have high ceilings, such as warehouses, facilities, gyms and hangers. Basicly the LED high bay lights are suitable for the building where is hard to replace a light when the bulb is burned. By using these type of LED high bay lights, we are actually saving time as we don‘t need to replace them often and we are also saving more dollars in the long run beside the energy.
Features:
1) CE and RoHS approved
2) High brightness Osram / Philips LED.
3) World-leading high efficiency Mean well LED driver.
4) 45°/90°/120° beam angles optional.
5) Color temperature range from 2800k-6000k.
6) Patented single piece 60W-300W high power LED light source with unique multi-chip integration design ensure high light purity, high heat conduction and slow brightness derating.
7) Unique heat sink design ensures superior heat management.
8) Voltage input 90-305VAC, 50/60Hz
9) Superior color rendition compared to conventional industrial luminaire.
10) Low power consumption. More than 70% energy saving compared to conventional HID/HPS.
11) Environmental friendly. Lead and mercury free.
12) Resistant to shock and vibration.
13) Start without delay and flicker free. Instant ON/OFF operation.
14) Long operation life time, above 50,000hours. Low maintenance costs.
15) 5 Years Warranty
2) High brightness Osram / Philips LED.
3) World-leading high efficiency Mean well LED driver.
4) 45°/90°/120° beam angles optional.
5) Color temperature range from 2800k-6000k.
6) Patented single piece 60W-300W high power LED light source with unique multi-chip integration design ensure high light purity, high heat conduction and slow brightness derating.
7) Unique heat sink design ensures superior heat management.
8) Voltage input 90-305VAC, 50/60Hz
9) Superior color rendition compared to conventional industrial luminaire.
10) Low power consumption. More than 70% energy saving compared to conventional HID/HPS.
11) Environmental friendly. Lead and mercury free.
12) Resistant to shock and vibration.
13) Start without delay and flicker free. Instant ON/OFF operation.
14) Long operation life time, above 50,000hours. Low maintenance costs.
15) 5 Years Warranty
Specifications:
Item No.: HB3300
Product Model: LM-HBG284B300Y03-WW/NW/CW
Power (W): 300Watts
Size(mm): ¢500*510mm
Input Voltage(V): AC90-305V 50/60Hz
Color(CCT): 3000K/4000K/6000K
Luminous Flux: 30000lm
LED Quantity: 308Pcs
Led Type: Osram / Philips LED
Beam Angle: 45° / 90° / 120°
PF: 0.95
LED Driver: MEANWELL or UL Approved Driver
Lifespan: 50,000hours
Warranty: 5 years
| Product Model | Power(W) | size(mm) | Color(CCT) | Input voltage(V) | LED Type | Beam Angle | Luminous |
| LM-HBG182B60Y03-CW | 60w | Φ500*398mm | 3000k/4000k/6000k | AC90-305V 50/60Hz | OSRAM/PHILIPS 3030LED | 45°/90°/120° | 6000lm |
| LM-HBG182B80Y03-CW | 80w | Φ500*398mm | 3000k/4000k/6000k | AC90-305V 50/60Hz |
OSRAM/PHILIPS 3030LED | 45°/90°/120° | 8000lm |
| LM-HBG182B100Y03-CW | 100w | Φ500*435mm | 3000k/4000k/6000k | AC90-305V 50/60Hz | OSRAM/PHILIPS 3030LED | 45°/90°/120° | 10000lm |
| LM-HBG225B150Y03-CW | 150w | Φ500*453mm | 3000k/4000k/6000k | AC90-305V 50/60Hz |
OSRAM/PHILIPS 3030LED | 45°/90°/120° | 15000lm |
| LM-HBG225B200Y03-CW | 200w | Φ500*493mm | 3000k/4000k/6000k | AC90-305V 50/60Hz |
OSRAM/PHILIPS 3030LED | 45°/90°/120° | 20000lm |
| LM-HBG284B250Y03-CW | 250w | Φ500*470mm | 3000k/4000k/6000k | AC90-305V 50/60Hz |
OSRAM/PHILIPS 3030LED | 45°/90°/120° | 25000lm |
| LM-HBG284B300Y03-CW | 300w | Φ500*510mm | 3000k/4000k/6000k | AC90-305V 50/60Hz |
OSRAM/PHILIPS 3030LED | 45°/90°/120° | 30000lm |
Dimmesions(mm):
.jpg)
.jpg)
Installation:
Applications:
Applications in buildings, factory, warehouse, work shop, large supermarket,gymnasium, stadiums, squares, industrial lighting etc.
.jpg)
Package:
| Reflector | Qty/Mater CTN | Master CTN | Gross weight |
| 45°LED Planting Cover | 30pcs | 44*44*40cm | 15kg |
| 90°LED Palnting Cover | 20pcs | 41*41*35cm | 11kg |
| 120°LED Planting Cover | 20pcs | 46*46*25cm | 11kg |
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 working days, mass production time needs 7-15 working days.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Cautions:
·Pay attention to the voltage before using.
·Don‘t press LED surface.
·Don‘t take apart the product or replace mechanical and electronic components.
·Don‘t stare at the strong light for a long time as it may cause injury to eyes.
