This 70w CREE COB LED Canopy Light owns the smallest size in the market, 243*243*77.93mm, it is the most cost effective led canopy light in the market. With well known brand CREE COB, top quality LED Driver to assure best quality. The heavy-duty die cast aluminum heatsink can provide strong resistance to corrosion and weathering, so that the led canopy can be used in wet location.There are 3 ways for easy installation, mount with J-box or 1/2” conduit, pendant install with 3/4” conduit.
Features:
1. Using well known brand CREE COB LEDs；
2. World-leading high efficiency Meanwell LED driver，UL approval led driver and CE approval driver are all available.
3. Trouble free, premium quality material;
4. 50%-70% energy saving;
5. 30%-50% shipping cost saving;
6. Easy installation, labour cost saving.
Advantages:
.jpg)
Specifications:
Item No.: CA170
Product Model: LM-CAG243C070Y01-WW/NW/CW
Power (W): 70Watts
Size(mm): 243*243*77.93mm
Input Voltage(V): AC100-277V 50/60Hz
Color(CCT): 3000K/4000K/5000K
Luminous Flux: 6095lm
LED Quantity: 1 Pc
Led Type: CREE COB LED
Beam Angle: 160°
CRI: >80
PF: 0.95
LED Driver: MEANWELL
Lifespan: 50,000hours
Warranty: 5 years

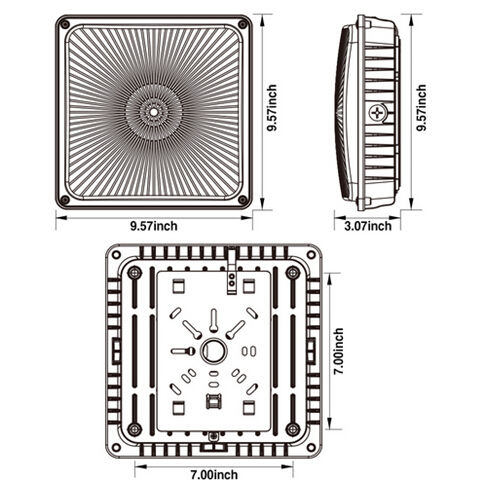

Dimmensions(inch):
.jpg)
Photometrics:
.jpg)
Applications:
Applications in Storage Areas, Garages, Canopies, Warehouses, Manufacturing Facilities, Hotel Canopies, Gas Station, Entry Ways, Security Lighting etc.
Features:
1. Using well known brand CREE COB LEDs；
2. World-leading high efficiency Meanwell LED driver，UL approval led driver and CE approval driver are all available.
3. Trouble free, premium quality material;
4. 50%-70% energy saving;
5. 30%-50% shipping cost saving;
6. Easy installation, labour cost saving.
Advantages:
Specifications:
Item No.: CA170
Product Model: LM-CAG243C070Y01-WW/NW/CW
Power (W): 70Watts
Size(mm): 243*243*77.93mm
Input Voltage(V): AC100-277V 50/60Hz
Color(CCT): 3000K/4000K/5000K
Luminous Flux: 6095lm
LED Quantity: 1 Pc
Led Type: CREE COB LED
Beam Angle: 160°
CRI: >80
PF: 0.95
LED Driver: MEANWELL
Lifespan: 50,000hours
Warranty: 5 years
Dimmensions(inch):
Photometrics:
Applications:
Applications in Storage Areas, Garages, Canopies, Warehouses, Manufacturing Facilities, Hotel Canopies, Gas Station, Entry Ways, Security Lighting etc.
