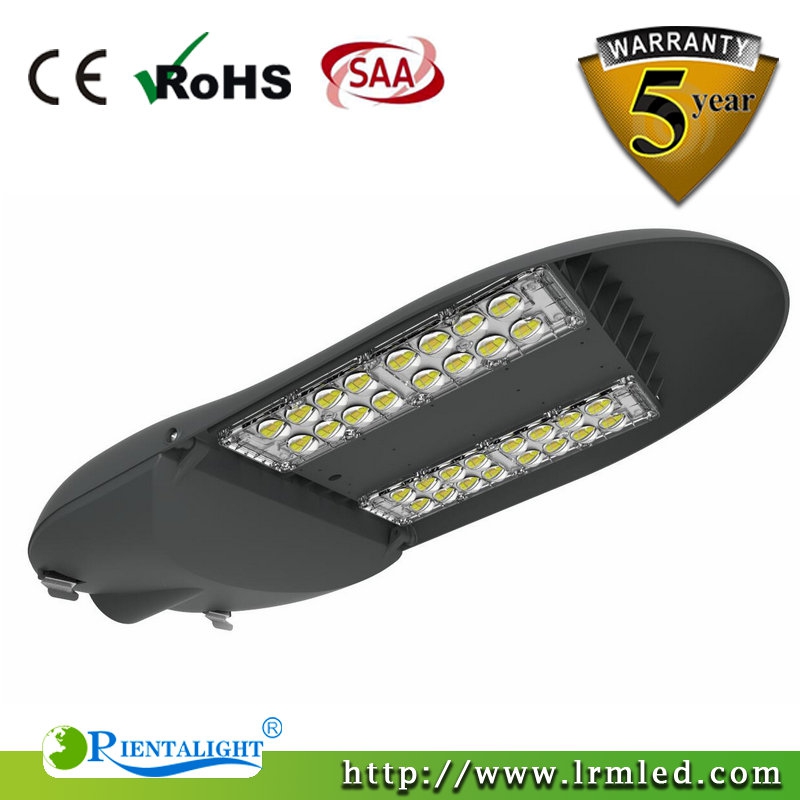

120w led street light fitting is the most cost-effective street light in the market. 120w led street light fitting deliver best luminous output >120lm/w,super long life 50,000hours. IP65 rated, 5 years warranty for the whole led street light fitting.
Features:
1. High luminous efficiency is >120lm/W;
2. Low energy consumption, can replace high pressure sodium street Light directly;
3. Advanced technology: Famous Osram led chips and high quality UL power supply are used, realizing long-term reliable and stable working without failure and maintenance;
4. High quality 6063 aluminium body with Anodic oxidation corrosion, patented cooling body design to make sure high efficient heat management;
5. Reasonable light distribution: wide lighting angle, and ensure an ideal uniformity of brightness on the road surface, keep the LED lighting efficiency on a high level.
6. Long lifespan: up to 50,000 hours, is 5-10 times working life than a traditional light source;
7. IP65 protection grade.
8. 5 years warranty.
Specifications:
Item No.: SL3120
Product Model: LM-SLG290O120Y03-CW
Power (W): 120 Watts
Size(mm): 566*290*97mm
The hole of lamp-post: Φ62mm
Input Voltage(V): AC100-277V 50/60Hz
Color(CCT): 3000K/4000K/5000K/6000K
Luminous Flux: 13000lm
LED Quantity: 128 Pcs
Led Type: OSRAM /PHILIPS
Beam Angle: 140*60°
IP Grade: IP65
Power Supply Certificates: CE RoHS SAA CB UL CUL FCC
Operating Temperature: -40-60℃
CRI: 85Ra
PF: 0.95
Lifespan: 50,000hours
Warranty: 5 years

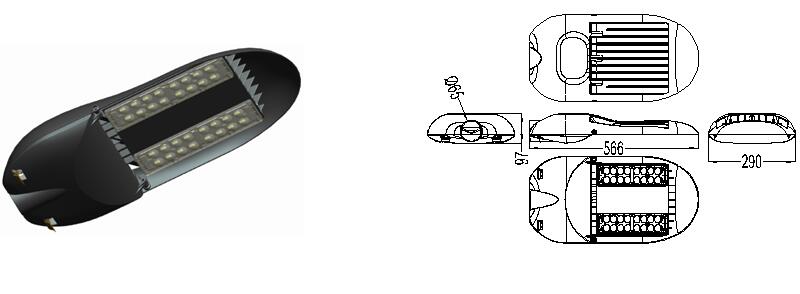

Dimensions:
Advantages:
LED Street Light Fitting Structure Show:
Applications:
City Main Road, by-path road, roads in residential community, plant area, parksyards, industrila zone, factory schools and squares, and so on.
Packing:
Notice for User:
·Please turn off power before installation.
·Pay attention to the voltage before using,after connectiong the power line, please make sure the wiring section is insulated.
·Do not press LED surface.
·Do not take apart the product or replace mechanical and electronic components.
·Do not stare at the strong light for a long time as it may cause injury to eyes.
·If any doubt about the installation or use of this product, consult a competent electrician or technician.
